Quick Details

  • Type: Waterproof Membrane
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Brand
  • Model Number: self adhesive waterproof membrane
  • Item: self adhesive waterproof membrane
  • Base felt: polyester,fiberglass
  • Thickness: 1.5mm-3mm
  • surface: PE,Sand,Granules,Alumnium foil,PP,Plastic membrane
  • material: sbs and asphalt
  • usuage: subway, cold storage, airport ,runway and viaduc
  • Elongation: ≥300
  • Low temperaturer: -20,-25
  • color: black
  • watertightness: impermeable

Packaging & Delivery

Packaging Details packed in rolls with pallet or as customer's requirement
Delivery Time Shipped in 10 days after payment



Product Description

Anti-skid and breathable self-adheisve waterproof membrane for deck

Specification

1. Size:  1*10mm, 1*15mm, 1*20mm

2. Thickness: 1.5mm, 2.0mm, 3.0mm, 4.0mm

3. Weight: 25kgs, 26kgs, 32kgs, 38kgs.

4. Rolls in 1*20'GP: 800 rolls



Characters

1. Self-adhesive without bonding agent and torching

2. With good elasticity and elongation, can be used in -25 degree weather.

3. Easy and safe installation, and won't be effected by the weather, greatly reduce the

    construction period and the cost.

4. Environment protection product.

Technical Index



NO.

Reinforcement

PY

G



Type

I

II

I

II

1

Soluble

Matters

2mm

-

1300g/m2





3mm

2100g/m2





4mm

2900g/m2

2

Water tightness,30min,≥Mpa

0.3

0.2

0.3

3

Heat resistance degree,°C,no glide, no flow, no drop

90

105

90

105

4

Tension,

N/50mm

Longitudinal

450

800

350

500





transverse





250

300

5

Elongation at break,≥

Longitudinal

30%

40%

-





transverse







6

Brittleness point

-18°C

-25°C

-18°C

-25°C

7

Tearing strength,≥

Longitudinal

250N

350N

250N

350N





transverse





170N

200N

8

Manual work and climate quicken aging

Appearance

No.1 degree

(no glide, no flow, no drop)





Longitudinal tensionkeeping

rate,≥

80





Brittleness point

-10°C

-20°C

-10°C

-20°C

GB23411-2009





 With PE film

With Alumnium foil

With Sand/Granules

with polypropylene



Our Services

Why choose us?

1 We have installation guide.

2 Free sample could be sent to you for evalution.

3 OEM orders are preferred,welcom to visit our factory before you palce the order.

4 High qualtiy control with ISO9002,CE,ASTM approval.

5 More than 13 years waterproof and roofing materials manufacturer with export to 60 countries in        Europe,Asia,America etc.

6 Prompt delievery: 7 working days.

7 Warranty:life time can be more than 30 years.

 8 If don't satisfy with the prodcut,termless return the cargo.

Packaging & Shipping

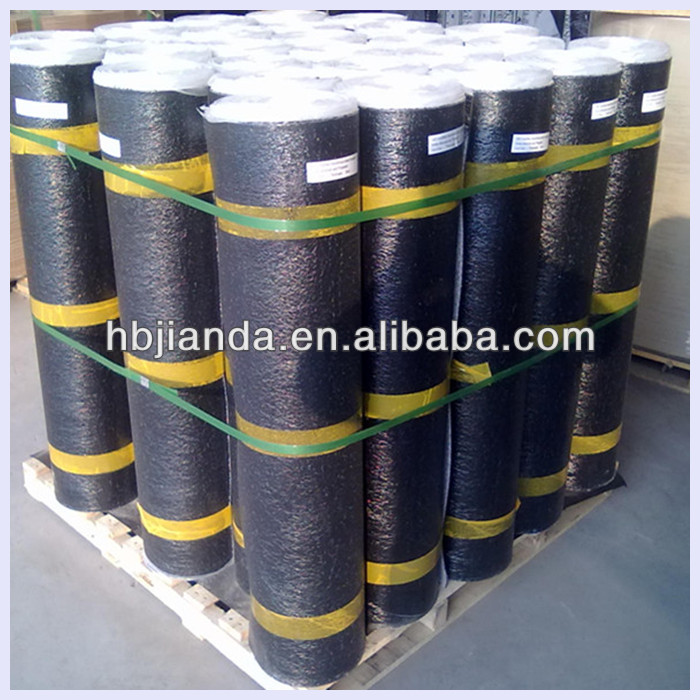

Packaging:packed in rolls with pallet

  Package and transportation:

  1.Membranes should be stored under dry and ventilated conditions.

  2.Different types of membranes must be piled separately.

  3.Under usual condition, storage period is one year since production date.

  4.Membrane roll should be put vertically during transportation.

     It should be kept away from sunshine and rainwater.

Company Information



FAQ

1 How to install about this type?

You only need to peel off the release paper ,and spread it on the roof,bsement etc.

It needn't torching.Very easy handling.

2 Can you produce double-side self adhesive waterproof membrane?

Yes,we introduce the most advanced equipment now. And if you need,we can produce the product as your requirement.

3 It can stick tightly?

Yes,of course,it can stick very tightly.Our product has passed out the test.



Welcome to your inquiry any time.
